Model
 Width of
Cut
 No. of
Discs
 No. of
Bearings
 Draw
Bar H.P.
 Weight
FDH-16
 7’
 16
 8
 35-65
 3400
FDH-20
 8 1/2'
 20
 8
 45-75
 3700
FDH-24
 10 1/2'
 24
 8
 55-85
 4500

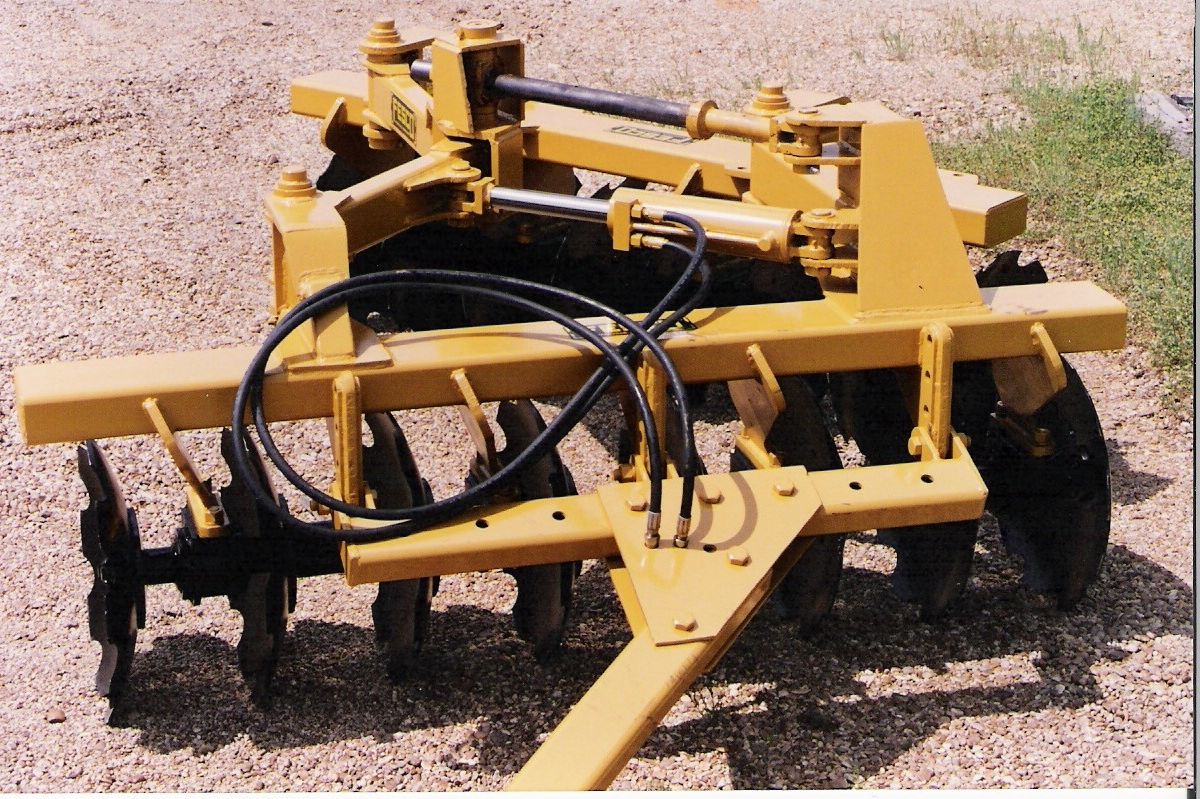

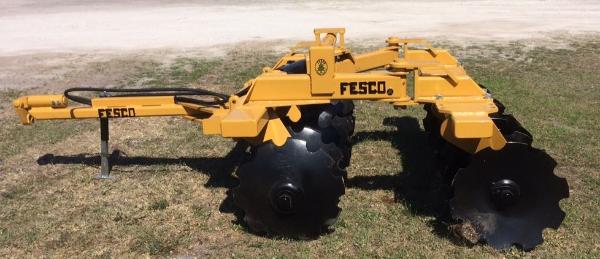

SERIES FDH OFFSET HINGE HARROW
STANDARD EQUIPMENT

• 26” x 5/16" Notched Discs
• Hydraulic Control Package
• Welded Hydraulic Cylinder

OPTIONAL EQUIPMENT

• Disc Scrapers
• Oil Bath Bearings
• 2 1/8" Axles
• 24 X 5/16 Disc
• 28 X 5/16 Disc

Features:

• Fesco® FDH harrows are designed for forestry and construction
applications with this in mind our gangs are welded on a swept back angle
thus protecting disc blades from damage caused from hitting trees and other
obstacles.

• High gang carrier designed to prevent trash build-up and clogging

• Full range of adjustments to control depth of penetration from the tractor

• Rugged construction for strength and rigidity

• Tapered roller gang bearings- greaseable

• 150 to 1500 lbs of harrow weight per disc blade

• 9” (229mm) maximum depth of penetration (standard disc blade)

• Levels, cuts and mixes to full working depth

• 11” Disc Spacing
Oliver & Dahlman Equipment Co. reserves the right to change the
design, material and specifications of its products without notice.
Illustrations may include optional equipment and accessories, and
may not include all standard equipment.
